Home > Products > aluminum foil air bubble > Paper Cross Cutter Air Bubble Film Cutting Machine

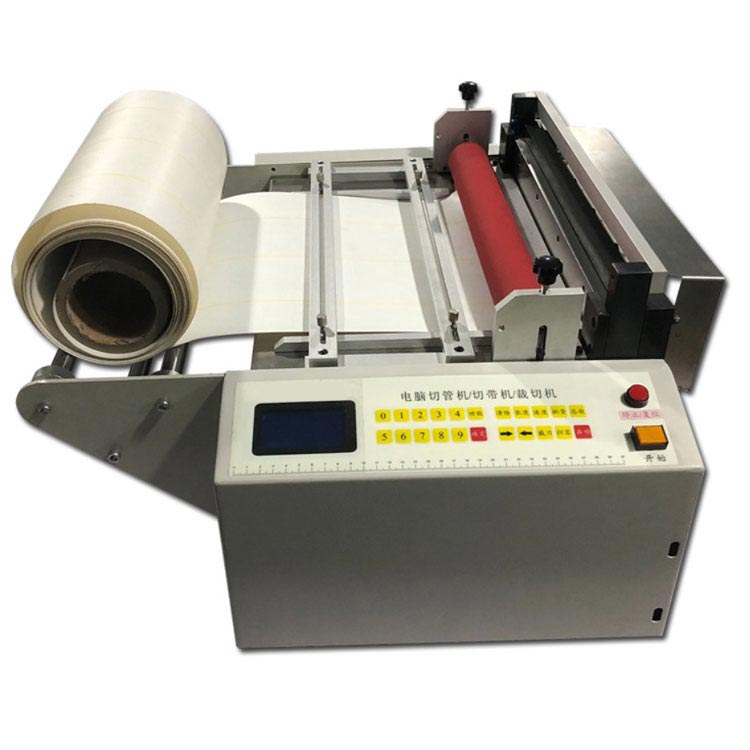

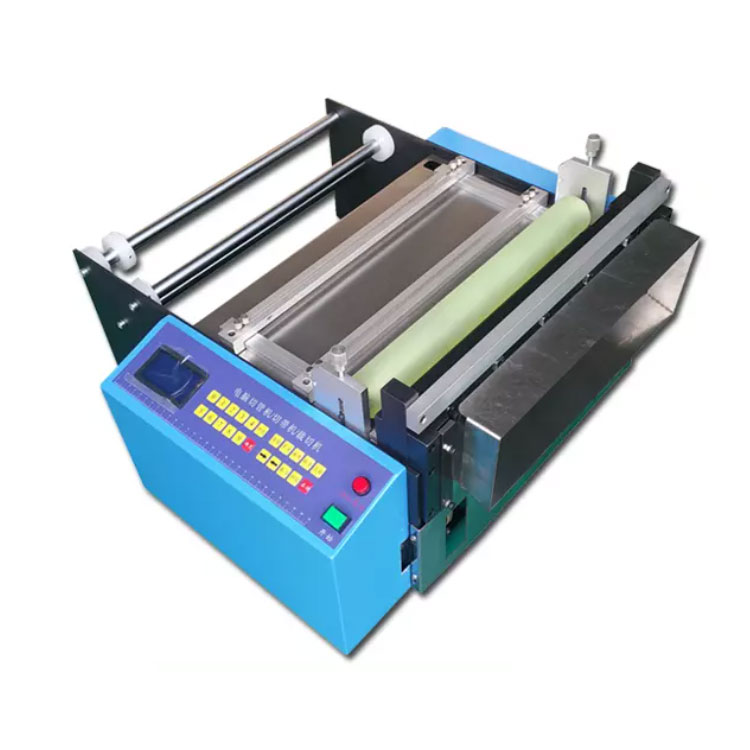

Paper Cross Cutter Air Bubble Film Cutting Machine

  • Paper Cross Cutter Air Bubble Film Cutting Machine
  • Paper Cross Cutter Air Bubble Film Cutting Machine
  • Paper Cross Cutter Air Bubble Film Cutting Machine
  • Paper Cross Cutter Air Bubble Film Cutting Machine

Paper Cross Cutter Air Bubble Film Cutting Machine

    Packaging: Standard export packing way
    Productivity: 100pcs/month
    Brand: Flying Man
    Transportation: Ocean,Land,Air,Express
    Place of Origin: China
    Supply Ability: 100pcs/month
    HS Code: 8441100000
    Port: Main port, China

Basic Info

Model No.: FMHZ-600

Product Description

Paper Cross Cutter Air Bubble Film Cutting Machine/Cross Cutting Machine

This cross cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.

This automatic cutting machine mainly suitable for high speed cold/hot full/half cut strip.


High precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

Paper cross-cutting machine


Product Parameters
Fully automatic cross cutting machine
Model
FMHZ-600

Cutting length
0.1 mm-9999.9 mm



Cutting Width
0 - 610 mm

Cutting precision
0.1 mm



Feeding speed
Adjustable, max. running 34 m/minute



Power
0.85 kw

Voltage
220 v
Machine Weight
75 kgs

Machine size
575 x 865 x 375 mm

Feeding motor
Stepper motor



Cutting motor
250 W reducer motor



Feed roller
PUR: roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree



Cutter material
SKD11




Performance Feature


Special cutting tools


Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

Automatic Cutting Machine


Core technology
Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.Paper cutting machine
Timing, quantitative and fixed speed

The length and speed can be adjusted continuously to achieve high efficiency.
Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.

Set up automatic group accumulator and total accumulator count.

Automatic Cutting Machine


Numerical control display device
This machine adopts microcomputer numerical control display device, cutting length/quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall. With thimble type feeding mechanism, it can be fast feeding.
Cross cutting machine

86 stepper motor
86 stepper motor ensure precise feeding, strong power, fast heat dissipation, speed, step length accurate control. And also ensure smooth/high precision cutting material with short time.
Save time and effort and materials.

Advantages & Features

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.
Paper cross cutting machine
Multi-functional button
Cutting length & velocity can be preset randomly in advance, whilst one compensated function for adjusting length and velocity is installed, among them, button: +6 has the function to restore production.
Paper cross-cutting machine

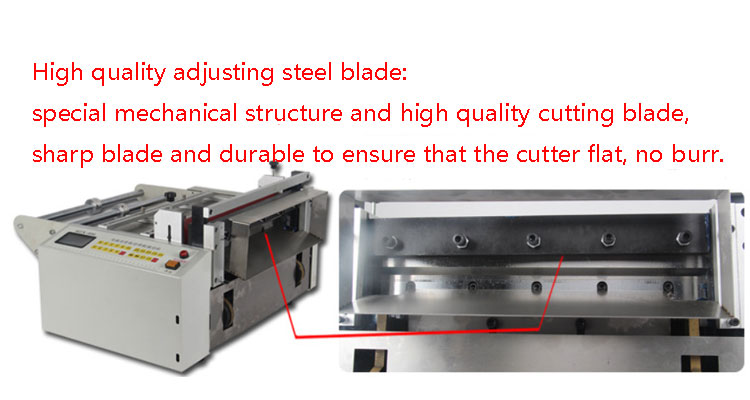

High quality adjusting steel blade
Special mechanical structure and high quality cutting blade, sharp blade and durable to ensure that the cutter flat, no burr.
Paper cross cutter

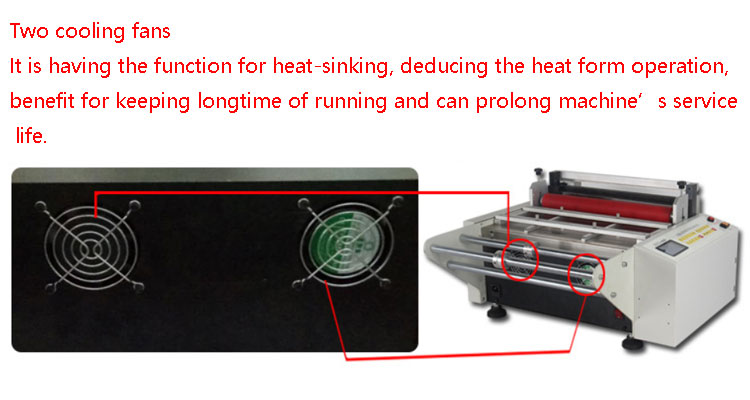

Two cooling fans
It is having the function for heat-sinking, deducing the heat form operation, benefit for keeping longtime of running and can prolong machine’s service life.
Paper cutting machine

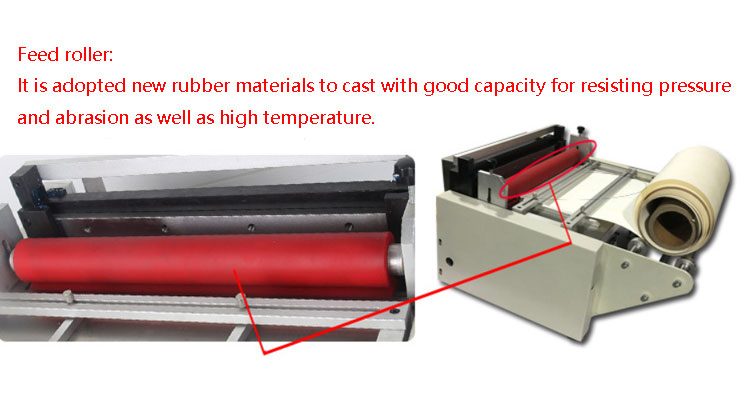

Feed roller

It is adopted new rubber materials to cast with good capacity for resisting pressure and abrasion as well as high temperature.



Product Application
Fully automatic cross cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, Aluminum Foil, Glass Cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. This cutting machine system including FMHZ-400/FMHZ-500/FMHZ-600/FMHZ-700, cutting width from 1-710 mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8 mm.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).
Automatic cutting machine application

Suzhou Flying Man Assembly Automation Co., Ltd.



Suzhou Flying Man Assembly Automation Co., LTD. is a professional manufacturer and supplier of electronic precision automation equipment, integrating R&D, production, sales and service.

We're specialized in assembling automatic machines, including die cutting machine, automatic cutting machine, roll slitting rewinding machine and label inspection machine. With high quality control for automatic machines, we have won good reviews in the industry.

Our hardware and software engineering team has over 20 years of experience in printing industry, which helped us lay a solid foundation in die cutting and automatic processing equipment. Our R&D team constantly improved independent innovation ability and have so far obtained more than 20 patents.

We`re focusing on manufacturing high-performance small hole positioning die-cutting machine. From a small part to the whole casting part, we pursuit the ultimate perfection in every detail. Our high-speed precision die-cutting machines can work in a steady pressure and no need to adjust the pressure for kiss cutting. Meanwhile, our die-cutting machines can automatically regulate pressure and control the depth of die cutting in 0.0025mm.

Our machines are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD TV, Medical, Camera, Wearable, E-label, Car and printing etc.

We offer samples testing, consultation, training, technical supporting and customized product to all of our customers.

Our driving force for progress: win-win cooperation, quality first, continuous innovation, excellence in the work process, continuous innovation and beyond, to help our customers create new value and new markets!

We always keep fair price, reliable and stable products with perfect service to all of our customers, and sincerely hope to create a brilliant future together!
